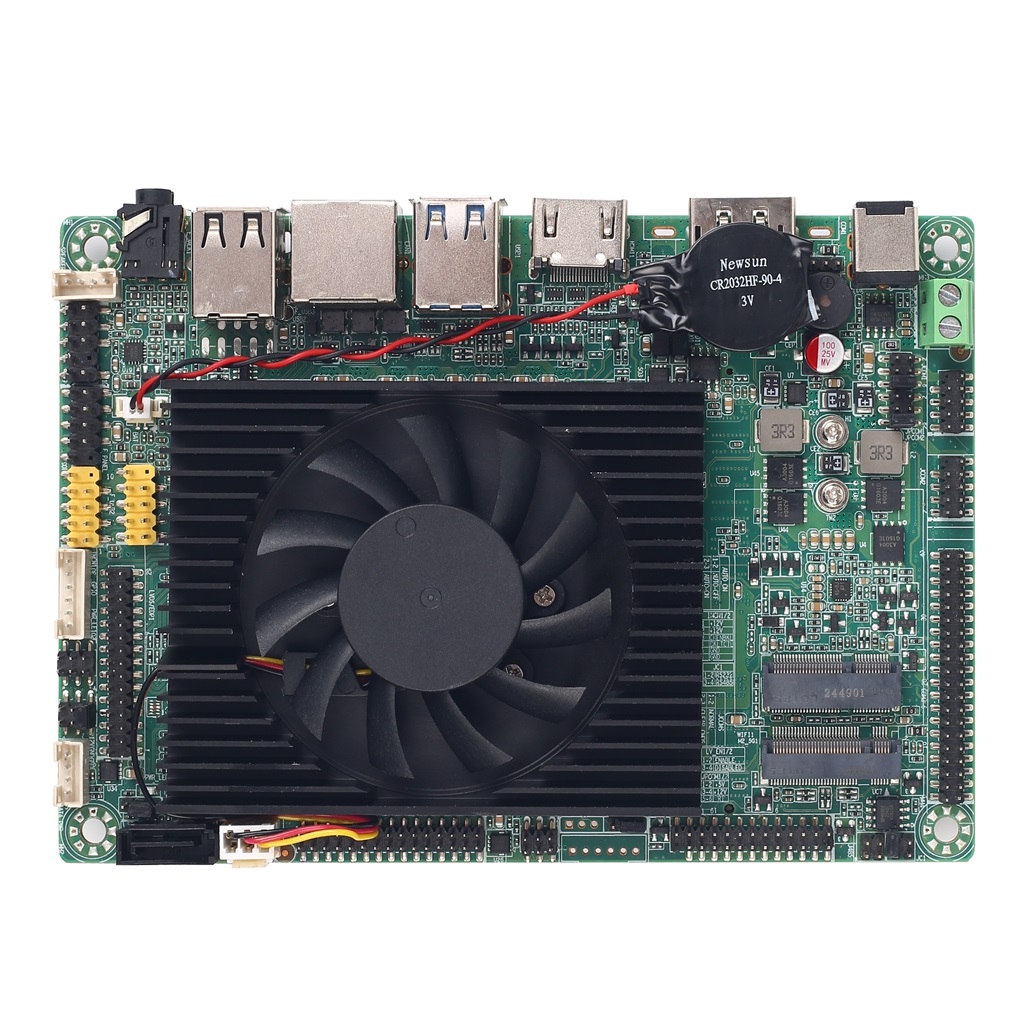

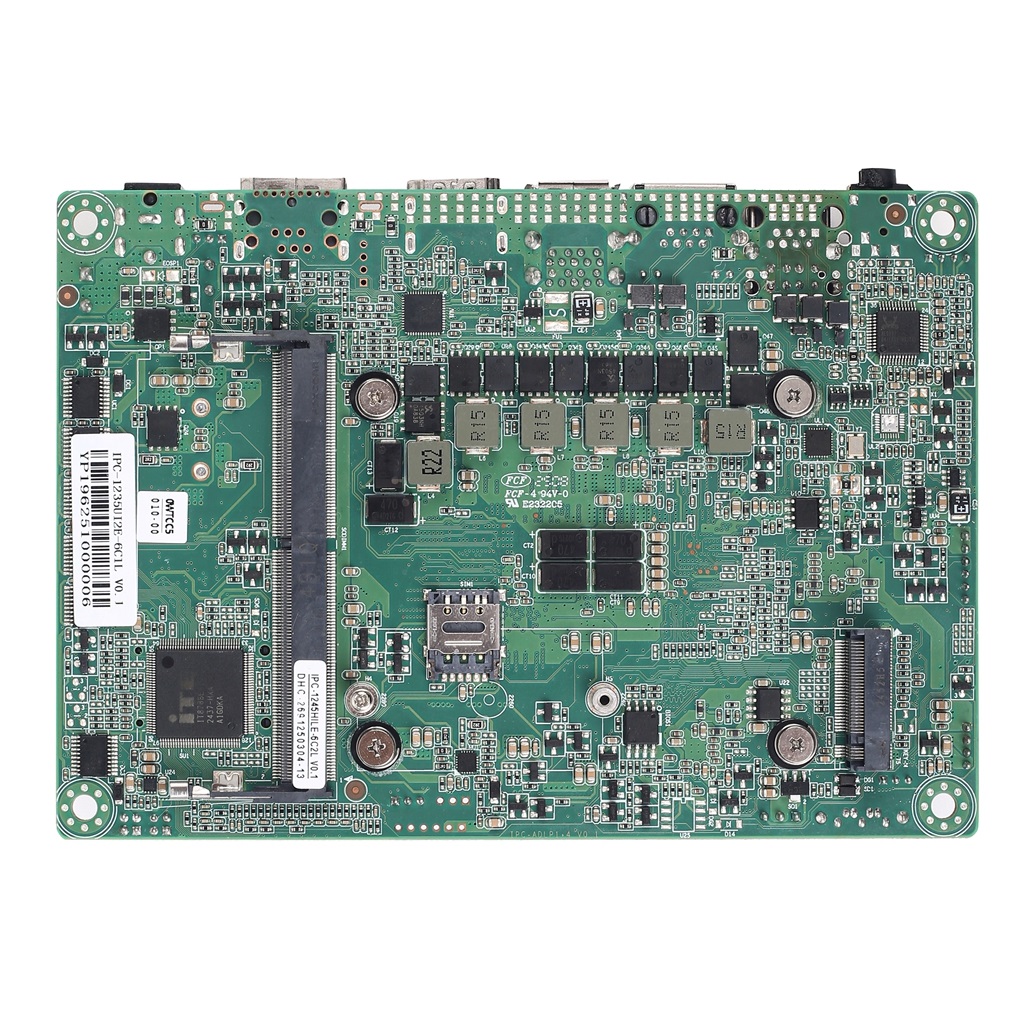

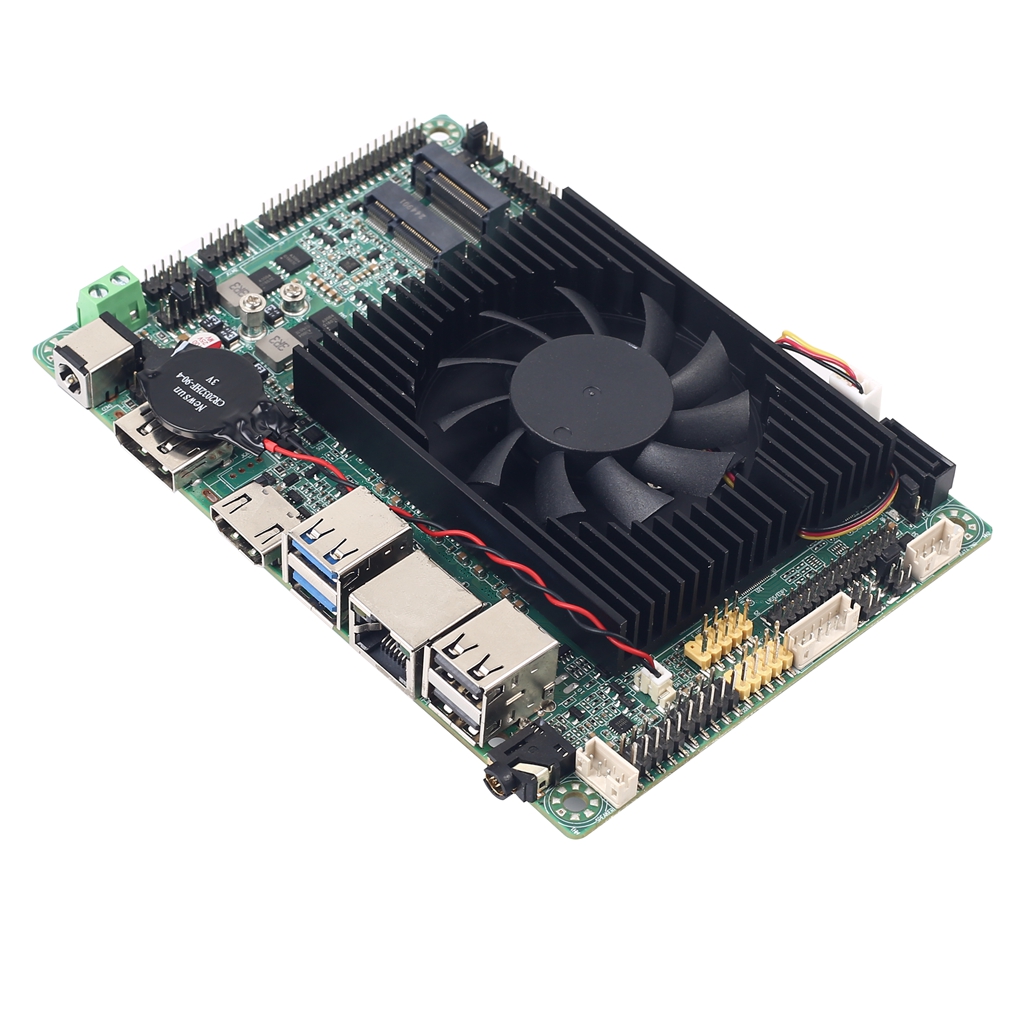

◆Intel®Processor N100 6M cachewith turbo frequency up to 3.40
◆1*DDR4 2133MHz,Upto16GB
◆2*EDP、1*DP支持3屏同步/異步顯示
◆2*USB3.0，5*USB2.0，6*COM，1*LPT，*RJ45LAN，1*SATA3.0
◆1*M.2NVME/M.2SATA 1*M.2-PCIE(WIFI+BT+5G)
◆支持網絡喚醒、無盤引導、定時開機功能
◆適用于零售、一體機、客戶機等行業
◆ Intel? Processor N100 6M cache with turbo frequency up to 3.40
◆1*DDR4 2133MHz,Up to 16GB
◆2*EDP、1*DP支持3屏同步/異步顯示
◆2*USB3.0，5*USB2.0，6*COM，1*LPT，1*RJ45LAN，1*SATA3.0
◆1*M.2NVME/M.2SATA 1*M.2-PCIE(WIFI+BT+5G)
◆支持網絡喚醒、無盤引導、定時開機、GPIO功能
◆適用于零售、一體機、客戶機等行業
| General | |
| CPU | Intel? Processor N100 6M cache with turbo frequency up to 3.40 GHz |
| Memory | 1*DDR4 2133MHz,Up to 16GB |
| Storage | 1*SATA3.0 Port |
| Expansion Slot | 1*M.2 SATA/NVME(SSD self-adaptation) 1*M.2-PCIE(WIFI+BT/5G) |
| BIOS | AMI BIOS |
| OS | Windows 10/11 |
| I/O | |
| Ethernet | 1*Realtek RTL8111H (10/100/1000Mbps) |
| Audio | 1*Realtek ALC897 |
| USB | 2*USB3.0 5*USB2.0 1*USB_TYPE_C |
| COM | 2*COM |

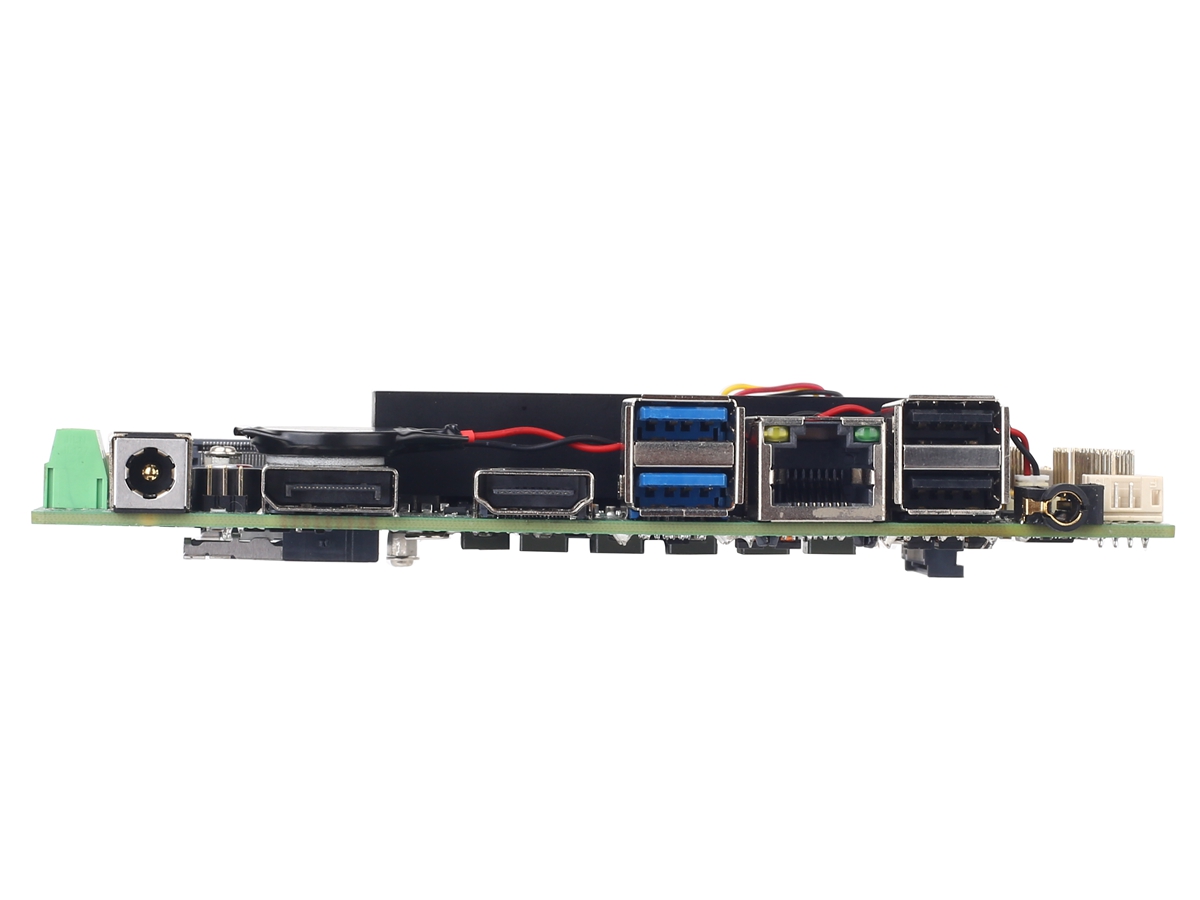

| I/O Connectors | 1*DC 1*COM 1*EDP2 1*USB_TYPE_C 1*LAN 1*USB3.0(Two USB ports in one group) 1*Lineout |
| Headers | 2*COM Headers 3*USB2.0 Header 1*F_AUDIO 1*FAN 1*3W Amplifier 1*J485 |
| Display | |
| Display Interface | 2*EDP max resolution up to 1920x1200@60Hz |
| Multiple Display | Quadruple |
| Mechanical & Environment | |
| Dimension | 146*102mm |
| DC Power | DC 12A |
| Temperature | Storage:-20~75℃ Operation:-15~60℃ |
| Relative Humidity | 5%~90%, non-condensing |
| NO. | 驅動類型 | 系統及位數 | 下載鏈接1 | 備用下載鏈接 | 備注 |
| 1 | Chipset | Windows_10_x64 | Link 1 | Link 2 | |
| 2 | LAN | Windows_10_x64 Windows_11_x64 | Link 1 | Link 2 | |
| 3 | VGA | Windows_10_x64 | Link 1 | Link 2 | |
| 4 | Audio | Windows_10_x64 | Link 1 | Link 2 | |
| 5 | Intel Serial IO | Windows_10_x64 | Link 1 | Link 2 | |
| 6 | Intel Management Engine | Windows_10_x64 | Link 1 | Link 2 | |
| 7 | Intel SST | Windows_10_x64 | Link 1 | Link 2 |
IPC-N100I4-2C2EV1.00說明書-中性.docx1 -中性_20250411160401.pdf
