YJ-1501X NAS主板
◆Intel® Celeron® Processor N5095
◆1*DDR4 SO-DIMM內存，up to 16GB
◆1*HDMI 1.4
◆2*USB 3.2 Gen 2 10Gbps
1*USB 3.2 Gen 1 5Gbps 1*USB 2.0 4*SATA(6Gb/s)
◆2*Realtek 2.5Gb LAN controller
◆2*M.2（PCIE3.0×1）
◆適用于NAS行業
- 型號： YJ-1501X
◆Intel? Celeron? Processor N5095
◆1*DDR4 SO-DIMM內存，up to 16GB
◆1*HDMI 1.4
◆2*USB 3.2 Gen 2 10Gbps
1*USB 3.2 Gen 1 5Gbps
1*USB 2.0
4*SATA(6Gb/s)
◆2*Realtek 2.5Gb LAN controller
◆2*M.2（PCIE3.0×1）
◆適用于NAS行業

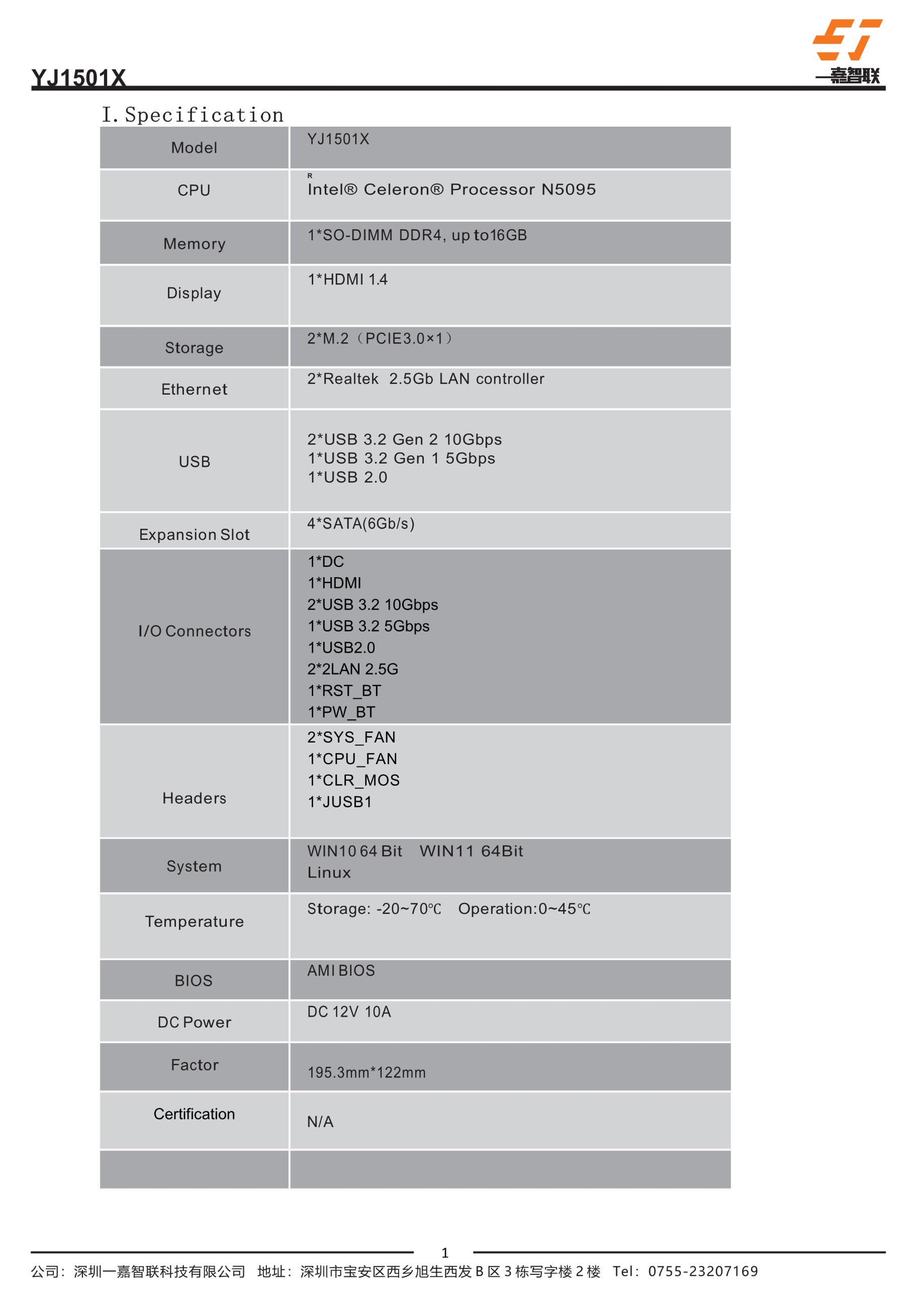

| General | |
| CPU | Intel? Celeron? Processor N5095 |
| Memory | 1*SO-DIMM DDR4, up to16GB |
| Storage | 2*M.2(PCIE3.0×1) |
| Expansion Slot | 4*SATA(6Gb/s) |
| BIOS | AMI BIOS |
| OS | Windows 10/11, Linux |
| I/O | |
| Ethernet | 2*Realtek 2.5Gb LAN controller |
| USB | 2*USB 3.2 Gen 2 10Gbps 1*USB 3.2 Gen 1 5Gbps 1*USB 2.0 |

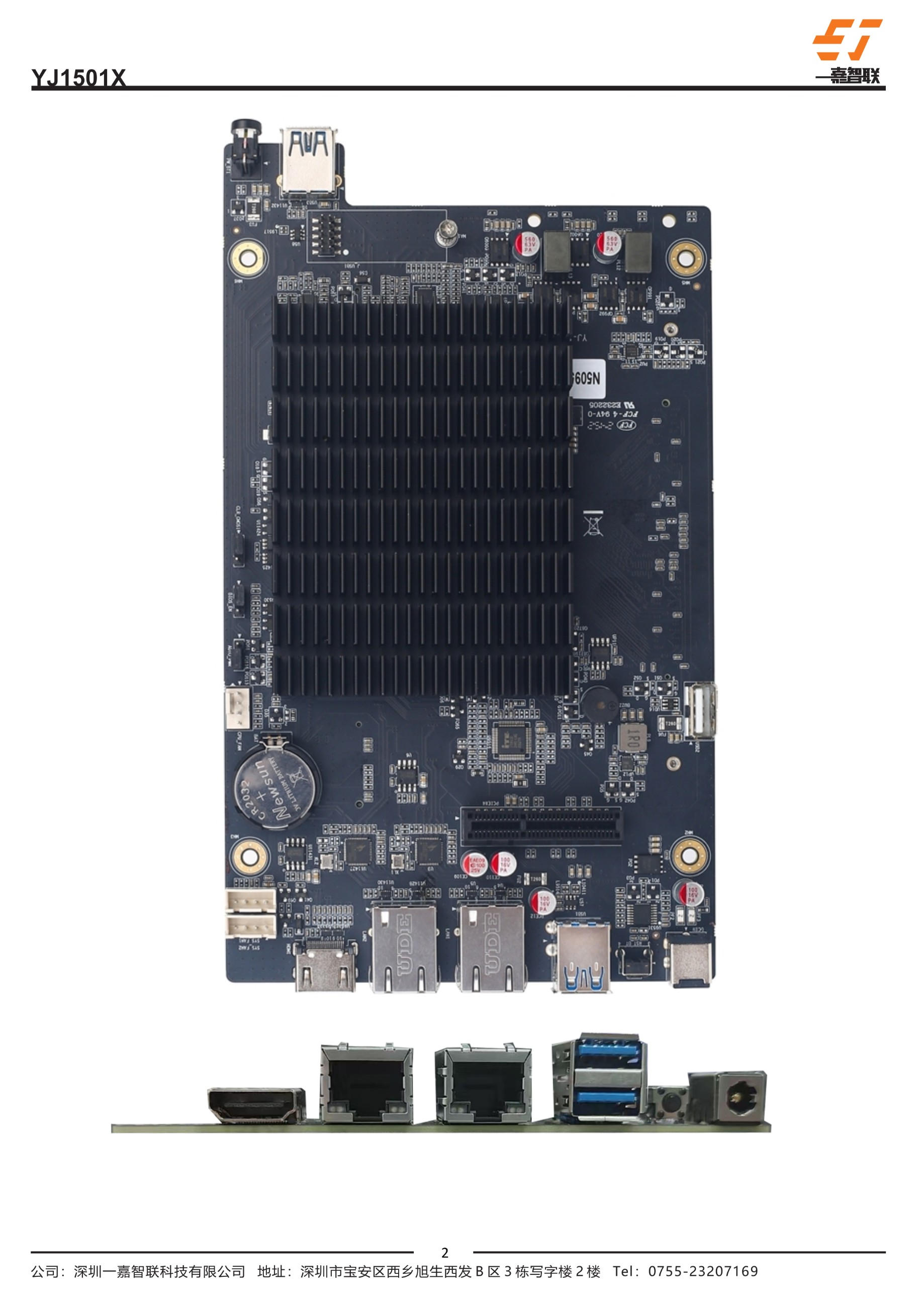

| I/O Connectors | 1*DC 1* HDMI 2*USB3.2 10Gbps 2*LAN 2.5G 1*USB3.2 5Gbps 1*USB2.0 1*RST_BT 1*PW_BT |

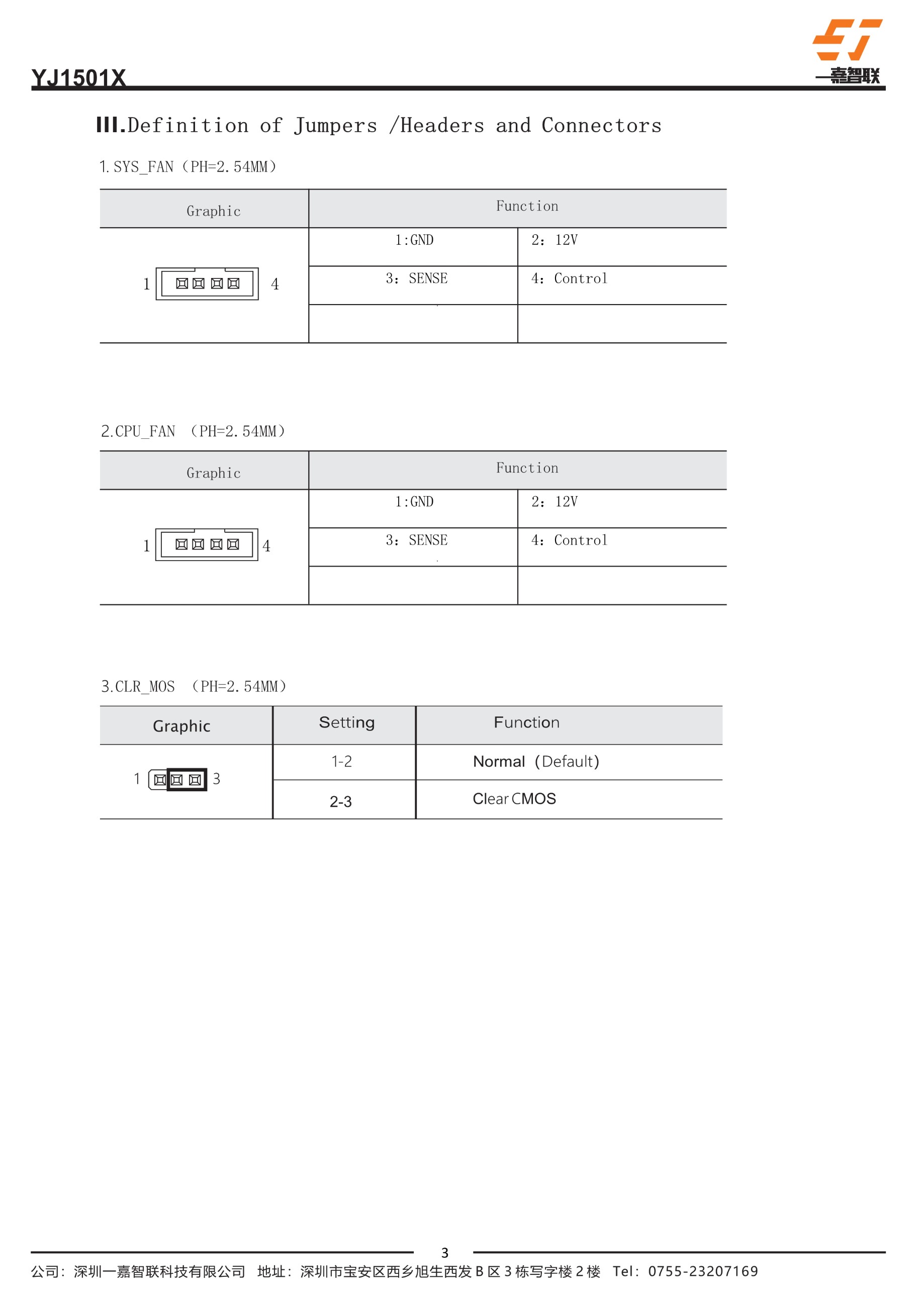

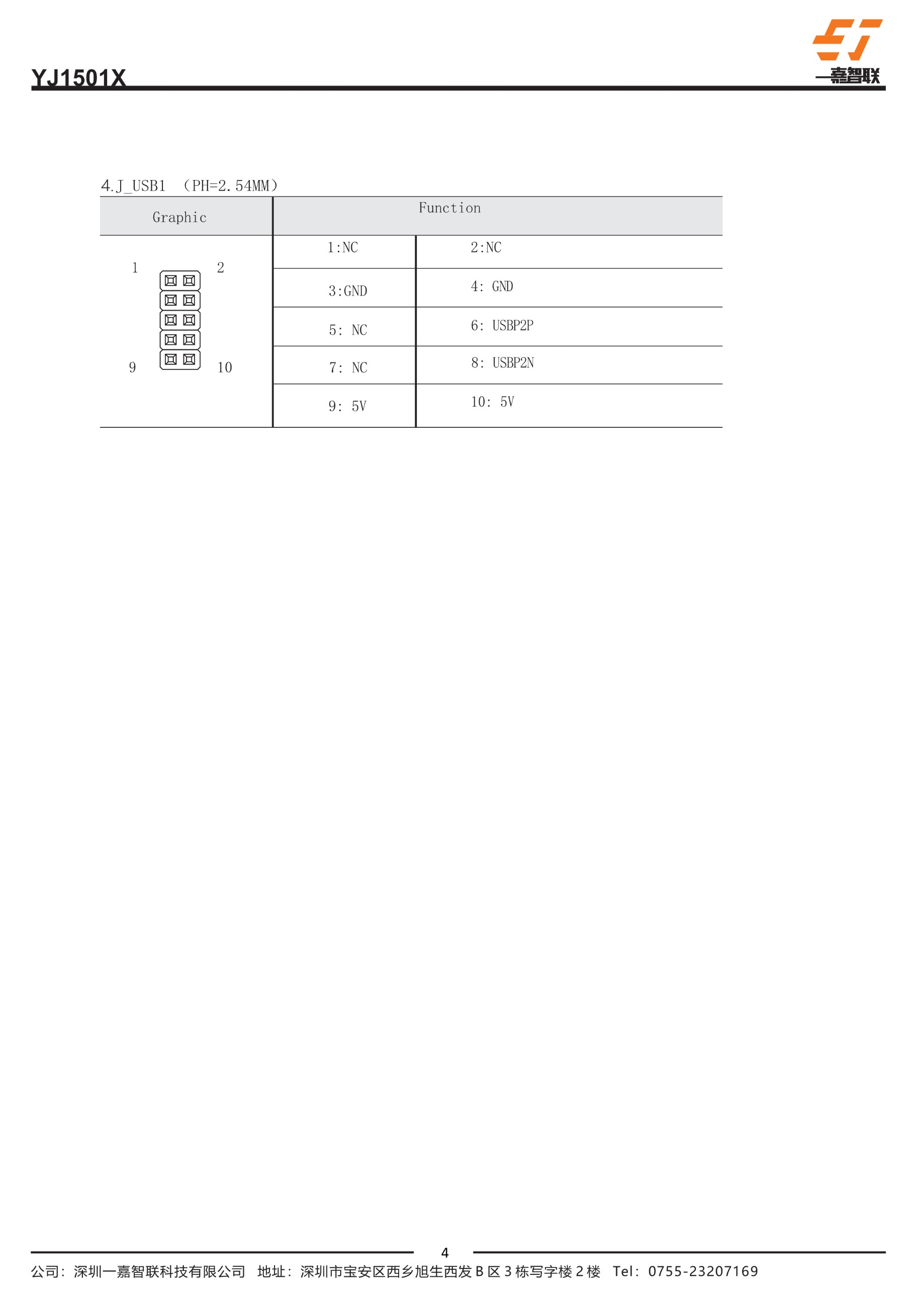

| Headers | 2*SYS_FAN 1*CPU_FAN 1*CLR_MOS 1*JUSB |
| Display | |
| Display Interface | 1*HDMI 1.4 |
| Mechanical & Environment | |
| Dimension | 195.3*122mm |
| DC Power | DC 12V10A |
| Temperature | Storage:-20~70℃ Operation:0~45℃ |
| Relative Humidity | 5%~90%, non-condensing |
YJ1501X.pdf
| NO. | 驅動類型 | 系統及位數 | 下載鏈接1 | 備用下載鏈接 | 備注 |
| 1 | Chipset | Windows_10_x64 | Link 1 | Link 2 | |
| 2 | LAN | Windows_10_x64 Windows_11_x64 | Link 1 | Link 2 | |
| 3 | VGA | Windows_10_x64 | Link 1 | Link 2 | |
| 4 | Audio | Windows_10_x64 | Link 1 | Link 2 | |
| 5 | Intel Serial IO | Windows_10_x64 | Link 1 | Link 2 | |
| 6 | Intel Management Engine | Windows_10_x64 | Link 1 | Link 2 | |
| 7 | Intel SST | Windows_10_x64 | Link 1 | Link 2 |
